Key Features

Self-adaptive Turbo HD-TVI/AHD/CVBS signal input
Up to 2-ch 4 MP IP cameras input
5 MP/4 MP Turbo HD video input and live view
20 fps in live view for the 5 MP signal input, and real-time frame rate in live view for the 4 MP 25 and 4 MP 30 signal inputs
Defogging function enabled for the supported analog cameras
Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p Turbo HD signal

Compression and Recording

One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
Full channel recording at up to 5 MP resolution Video Output
Simultaneous HDMI/VGA output
HDMI output up to 4K resolution
Independent CVBS output improves compatibility at the most possibility and serves as the aux output or live view output only

Storage and Playback

One SATA interface (up to 6 TB capacity per HDD)
4/8-ch synchronous playback
Smart search for efficient playback
Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive) Smart Function
Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
Supports line crossing detection and intrusion detection of all channels
VCA information overlay in live view and smart playback
VQD (Video Quality Diagnostics)
Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

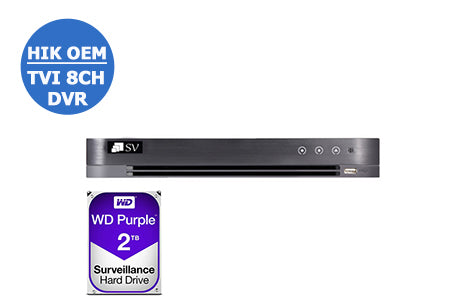

D-HKTVI5MP908 5MP TVI 8CH DVR
